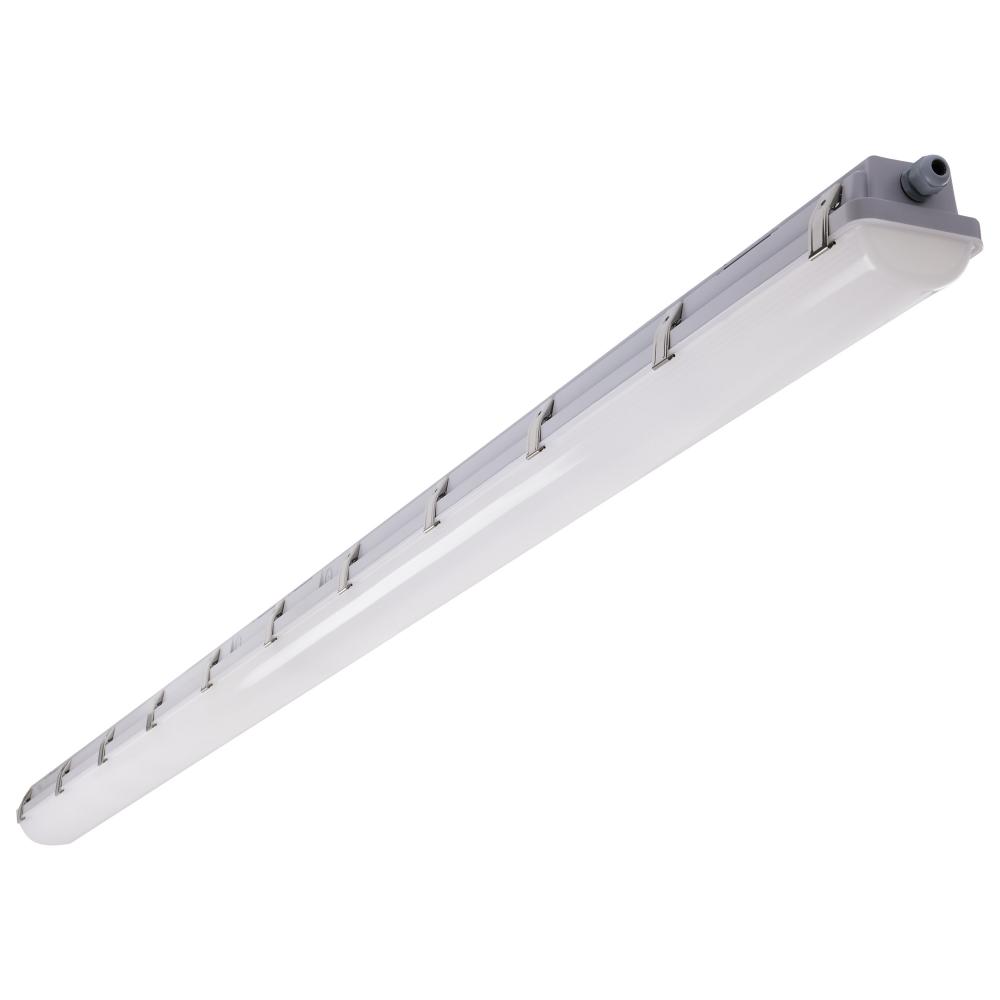

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 (65/825R1)
8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V
Product Specification
Item #
65/825R1
Dimensions
Height: 3.46"
Width: 4.33"
Additional product details
Category
Utility
Subcategory
Other Utility
Finish
Gray
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Linear
Sub Category
Vapor Proof
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
4.33
Each Length
96.45999999999999
Each Width
5.12
Length
94.48999999999999
Lumens
6400L-9360L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.417-0.144/0.500-0.173/0.600-0.207A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Thailand
CRI
80+
Dimmable Function
0-10V; Integrated Sensor
DLC Classification
Standard; Standard
DLC Primary Use
Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.2375
Each Quantity
1
Efficacy
128.00/131.33/130.00 LPW
FCC Compliant
Yes
Feature 1
120-347 Voltage - FOR USE IN CANADA
Feature 10
Suspension kit (sold separately)
Feature 2
Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
Feature 3
IP65 and IK08 Rated
Feature 4
CCT and Wattage Selectable
Feature 5
2KV built-in Surge Protection
Feature 6
Non-corrosive (PC) polycarbonate housing
Feature 7
0-10V Dimmable
Feature 8
Integrated Microwave Sensor
Feature 9
5 Year Warranty
Finish Family
Gray
Fixture shape
Linear
Flicker Free
No
Has Driver
Yes
HID Equiv
150W-200W
Impact Rating (IK)
IK08
Incandescent Equivalent
400W-500W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's 65-825R1 wattage selectable, 8 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV s
Material
Plastic
Mounting Procedure
Ceiling/Wall
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Photocell
Integrated Microwave Sensor
Power Factor
>0.96
Quantity In Pack
1
Rated For Vapor Tight Fixture
Yes
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
8' LINEAR VAPOR PROOF W/SENSOR
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
14.20%
Wattage Selectable
Yes
Weight Lb.
12.13
